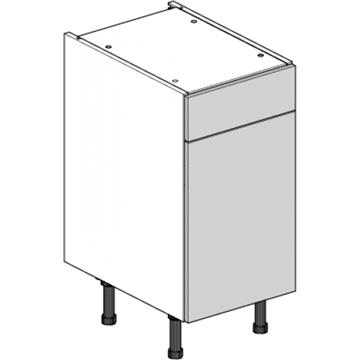

400mm Handleless Gloss Graphite Kitchen Drawer Line Base Unit - JGGR-DSBU400

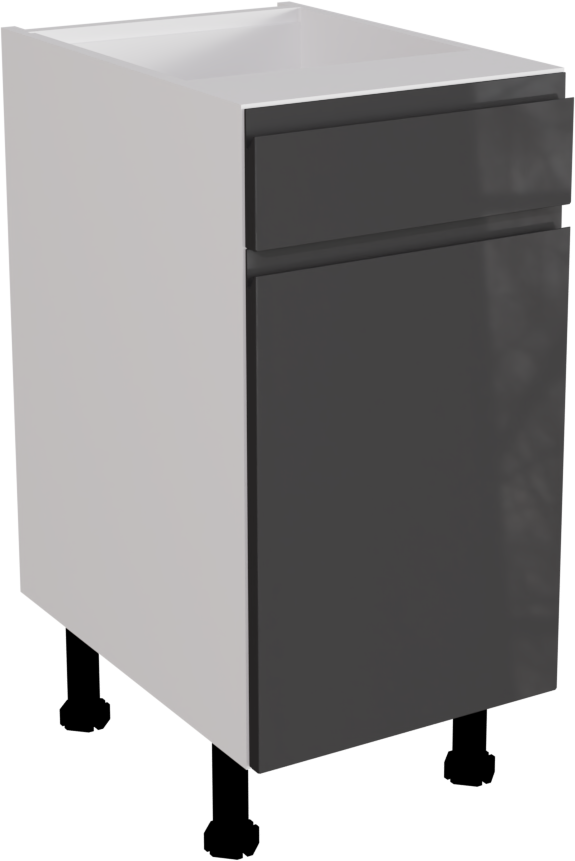

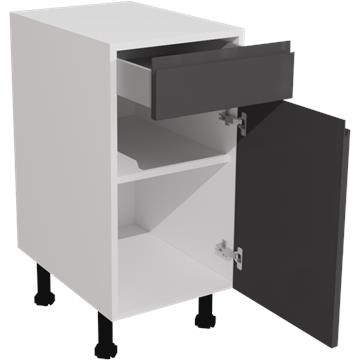

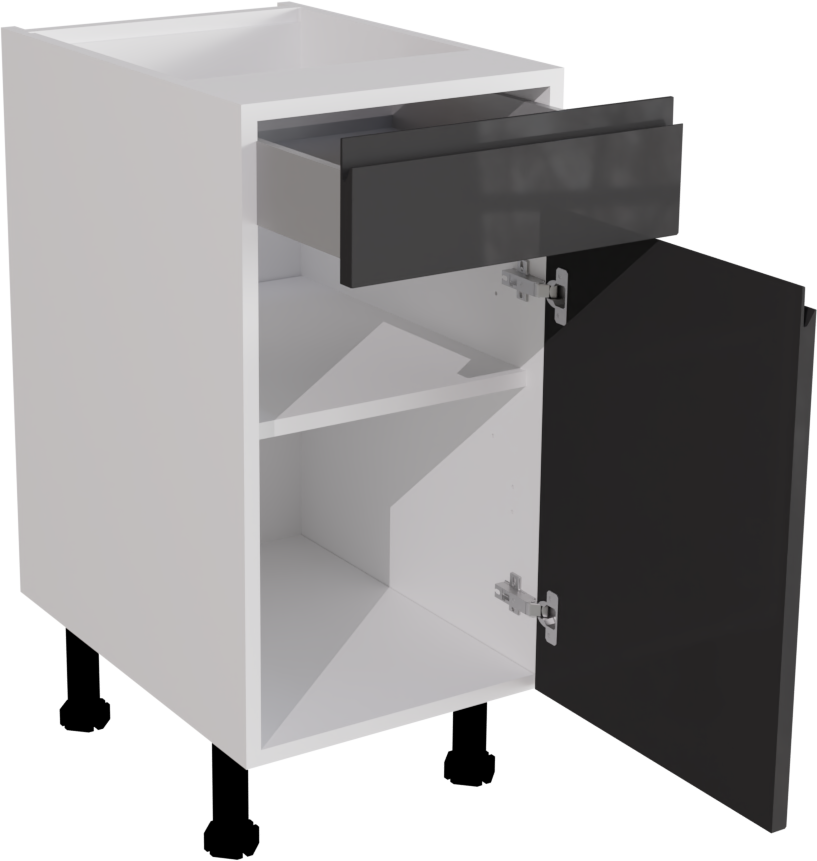

This is a 400mm handleless, high gloss graphite kitchen drawerline base unit. It is a matt kitchen base cabinet with a high gloss graphite jayline door and drawer. This listing includes the following parts:

1 x 720 Base 400 ClicBox Unit (Colour options available)

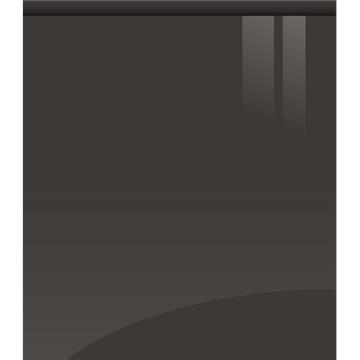

1 x 570x396 Door

1 x 140X396 Drawer Front

2 x Soft Close Hinges

2 x Hinge Mounting Plates

1 x 400W Atira Standard Drawer

The required legs, cover caps and shelf supports are also included.

Specifications

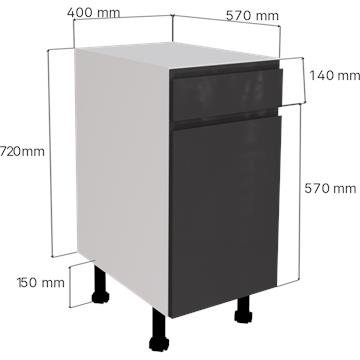

  • Height (inc legs): 870mm
  • Drawers Included: Yes (1 x Atira Standard Drawer Soft Close)
  • Hinge Cover Cap Included: No
  • Doors Included: Yes
  • Cabinet Back Material: 8mm Solid MFC Back
  • Back Void: 49mm
  • Cabinet Assembly: Clicbox tool-less assembly
  • Cabinet Depth: 570mm
  • Height: 720mm
  • Width: 400mm
  • Shelves Included: 1x 18mm Adjustable Shelves Included
  • Door Finish: Jayline Gloss Graphite(Matching Matt Colour Reverse)
  • Door Material: 19mm MDF with a Jayline handle -full wrap with continuous laminate
  • Type: Drawerline Base Unit
  • Cabinet Material: 18mm MFC(matt finish)
  • Adjustable Legs: Included(Adjustment from 140 - 178mm)
  • Hinges Included: Yes(Hettich 110 degree soft close)

Options

  • £213.46
  • Name: 400 Drawerline Base
  • Product Code: JGGR-DSBU400
  • Information: 1 x 720 Base DD 400 ClicBox White
    1 x Jayline Supergloss Graphite Pronto Door 570x396
    1 x Standard Hettich Hinge Pack (pair) Silver CPFITT0216
    1 x Jayline Supergloss Graphite Pronto Door 140x396
    1 x 400W Atira Standard Drawer
  • Dimensions (mm): 570L x 400W x 870H
  • Availability: 6 working days
  • Hinge Side(when looking from front): (Required)
  • Drawer Internal Colour: (Required)
  • Drawer Colour: (Required)
  • Drawer Internal: (Required)
  • Cabinet Colour: (Required)
    Grey Grey
    White White
    Anthracite Anthracite
    Urban Oak Urban Oak
    Dust Grey Dust Grey
    Change
  • Hinge Colour: (Required)
    Silver Silver
    Obsidian Black Obsidian Black
    Change
  • Items in Bag
  • £213.46
  • £375.70
  • Name: 400 Drawerline Base with Premium Pull Out Bin
  • Product Code: JGGR-DSBU400PB
  • Information: 1 x 720 Base DD 400 ClicBox White
    1 x Jayline Supergloss Graphite Pronto Door 570x396
    1 x Standard Hettich Hinge Pack (pair) Silver CPFITT0216
    1 x Jayline Supergloss Graphite Pronto Door 140x396
    1 x 400W Atira Standard Drawer
    1 x 400 Hafele Premium Pull Out Bin
  • Dimensions (mm): 570L x 870H
  • Availability: 6 working days
  • Hinge Side(when looking from front): (Required)
  • Drawer Colour: (Required)
  • Drawer Internal: (Required)
  • Cabinet Colour: (Required)
    White White
    Grey Grey
    Anthracite Anthracite
    Urban Oak Urban Oak
    Dust Grey Dust Grey
    Change
  • Hinge Colour: (Required)
    Silver Silver
    Obsidian Black Obsidian Black
    Change
  • Items in Bag
  • £375.70
